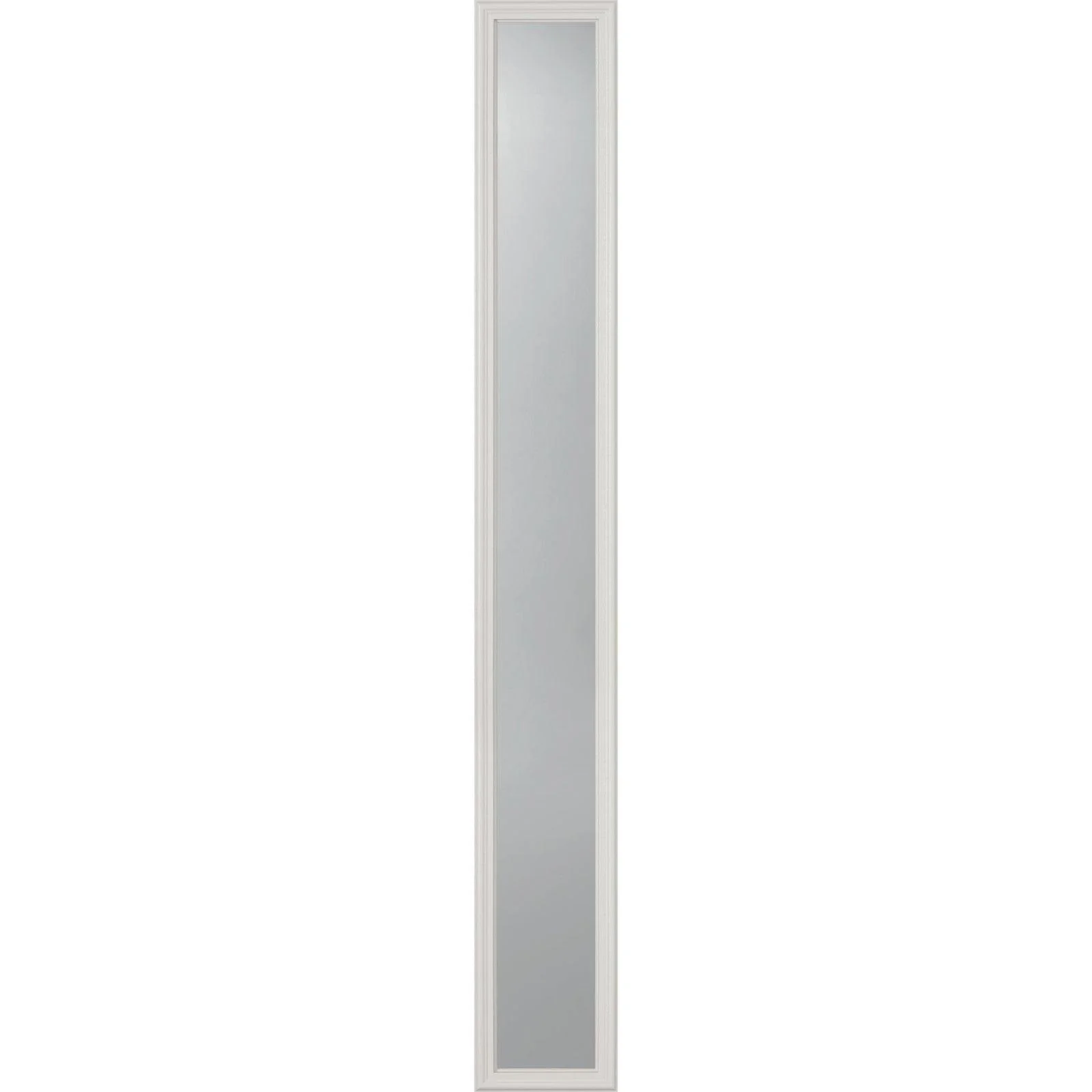

Clear 1 Lite Glass and Frame Kit (Full Sidelite)

Door Glass and Frame Kit

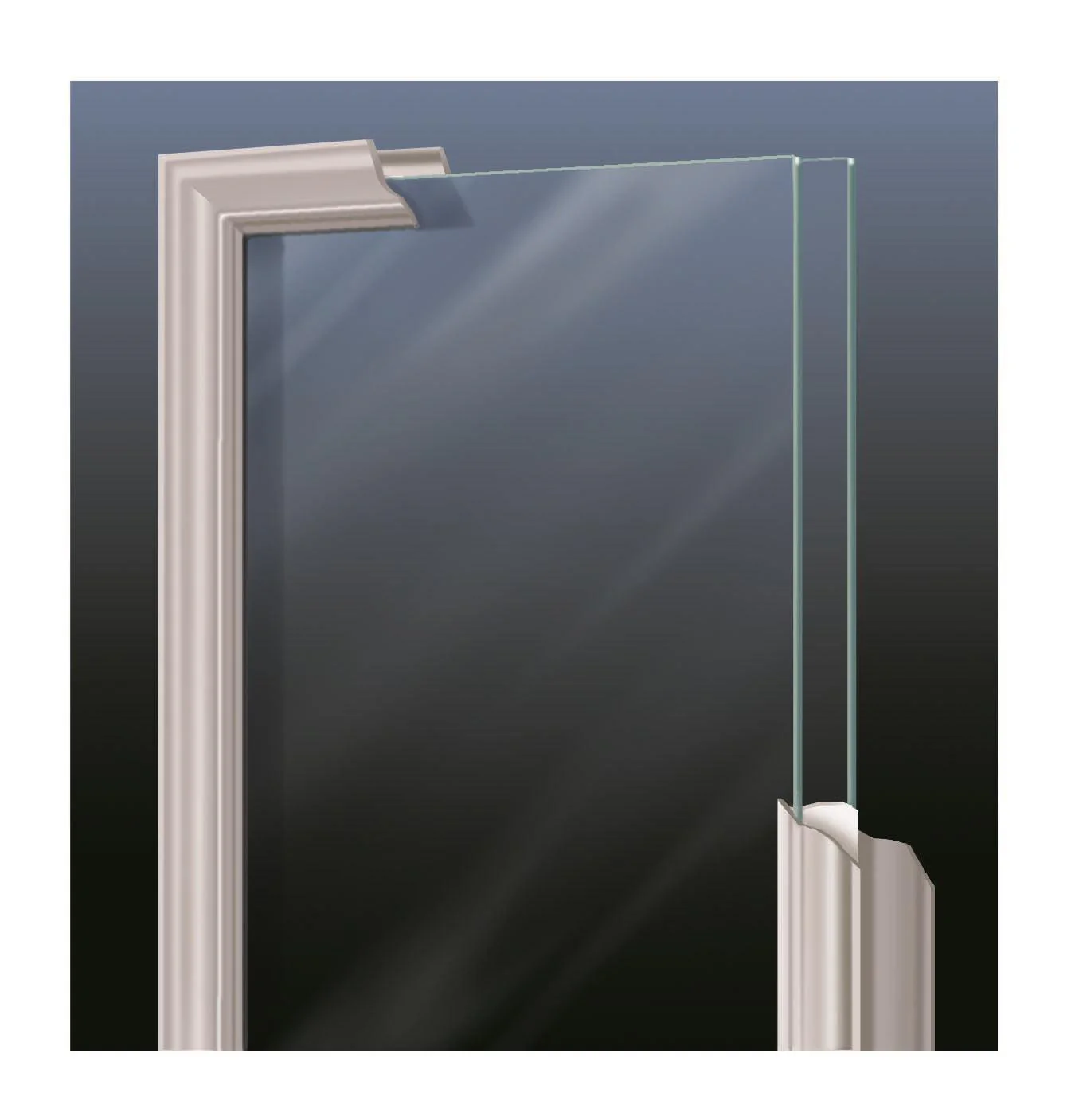

New door glass can transform your entryway without the need to replace your entire door system. Classic clear glass with standard profile frames.

Kit includes door glass, inside and outside door glass frame set, screws, and screw caps.

Measurements:

Style: Full Sidelite (rectangular)

Standard Size:

• Frame outside dimensions: 9" x 66" (replaces frames 8 1/2" to 9" wide and 65 1/2" to 66" tall)
• Door cutout dimensions: 8" x 65"
• Glass dimensions: 1/2" or 1" thick, 7" wide, 64" tall

Wide Size:

• Frame outside dimensions: 10" x 66" (replaces frames 9 1/2" to 10" wide and 65 1/2" to 66" tall)
• Door cutout dimensions: 9" x 65"
• Glass dimensions: 1/2" (clear) or 1" (low-e) thick, 8" wide, 64" tall

Narrow Size:

• Frame outside dimensions: 8" x 66" (replaces frames 7 1/2" to 8" wide and 65 1/2" to 66" tall)
• Door cutout dimensions: 7" x 65"
• Glass dimensions: 1/2" thick, 6" wide, 64" tall
